Truck-Lite Electro-Mechanical Flasher Module | # TL 97253
$12.99
Manufacturer: Truck-Lite
Availability:
1 Available
SKU
OBS TL 97253
Truck-Lite Electro-Mechanical Flasher Module
TL 97253 Truck Electro-Mechanical Flasher Module
- Brand: Truck-Lite
Features & Benefits:
- Designed for use in automotive and heavy duty applications
- Creates a strobe flash on an LED lamp
- Hardwired design eliminates pin corrosion
- Features coded wires and epoxy sealed circuitry for durability and long term use
- Designed to operate in temperature range -40 degrees to 85 degrees C
- Full operation voltage range 12 to 24Vs
- Maximum current 7 amps
- Flashes 3 times per 1/2 second
- Uses 2 modules as alternating LED strobe without cutting or splicing
Specs:
| Product Name | Electro-Mechanical, ABS, Flasher Module, 360fpm, 12-24V, Hardwired, Fit 'N Forget S.S./3 Position Connector 282105 |
| Brand | TL |
| Category | Flasher Module |
| Warranty | 1-Year |
| Country of Origin | CA |
| Features & Benefits | Designed for use in automotive and heavy duty applications. Creates a strobe flash on an LED lamp. Hardwired design eliminates pin corrosion. Features coded wires and epoxy sealed circuitry for durability and long term use. Designed to operate in temperature range -40 degrees to 85 degrees C. Full operation voltage range 12 to 24Vs|Maximum current 7 amps. Flashes 3 times per 1/2 second. Uses 2 modules as alternating LED strobe without cutting or splicing |
| Feature Highlights | Hardwired |
| Housing Material | ABS |
| Itm Id | 2325917 |
| KIT (Yes/No) | No |
| Lamp Connection | Hardwired |
| Mount Type | 2 Screw |
| NAPA Part Number | 97253 |
| Number of Wires | 5 |
| Packaging Type | Standard |
| Part Number | 97253-4 |
| Plug Side One | Hardwired |
| Plug Side Two | Fit 'N Forget S.S.|3 Position Connector 282105 |
| Std Carton Qty | 1 |
| Taxonomy | Lights, Flasher Modules |

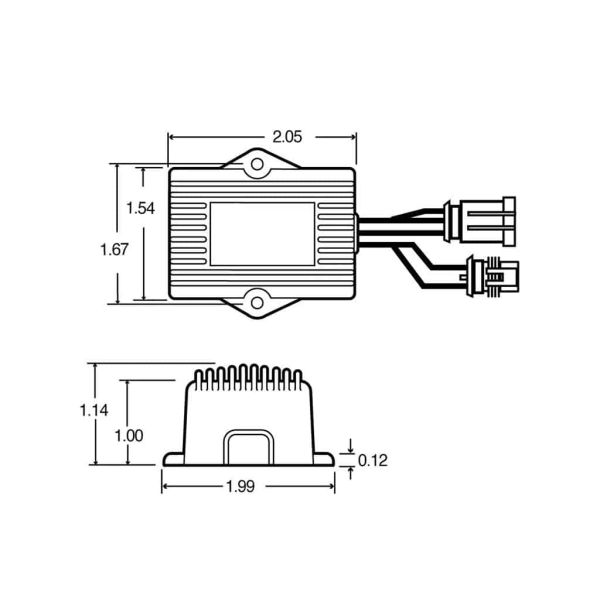

| Total Depth_MMT | 50.55 |
| Total Depth | 1.99 |
| Temp. Description | LED Electronic Flasher Module |
| Total Height_MMT | 28.96 |
| Total Height | 1.14 |
| Total Width_MMT | 52.07 |
| Total Width | 2.05 |
| UNSPSC/Tariff | 39000000 |
| UPC | 735111177302 |
| VMRS | 034-006-008 |
| Voltage (VLT) | 12|24 |
| Weight | 0.06 |
Part # TL 97253
TTP Part # OBS TL 97253
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
About Truck-Lite:
When It Comes To Research And Development, Truck-Lite Is Second To None. Truck-Lite’s Combination Of In-House Engineers And Industry-Leading Technology Allows Us To Bring New Products To Market Faster Than Our Competitors. New Products That Are Designed To Work Hard And Keep Drivers Safer On The Road.
Testing & Validation:
Inside Our Fully Equipped Environmental Testing Laboratories Located In North America And Europe, We Put Our Products Through Rigorous Testing. Our Products Are Subject To Extreme Temperatures, Harsh Chemicals, Real-World Elements And Much More To Ensure Top-Of-The-Line Quality And Performance.
| Weight | 0.250000 lbs |
|---|---|
| Dimensions | 5.5 × 5 × 1 in |
- VMRS: 034-006-008
- UNSPSC/Tariff: 39000000
- UPC: 735111177302
- Product Name: Electro-Mechanical, ABS, Flasher Module, 360fpm, 12-24V, Hardwired, Fit 'N Forget S.S./3 Position Connector 282105
- Brand: TL
- Category: Flasher Module
- Warranty: 1-Year
- Country of Origin: CA
- Feature Highlights: Hardwired
- Housing Material: ABS
- Itm Id: 2325917
- Lamp Connection: Hardwired
- Mount Type: 2 Screw
- NAPA Part Number: 97253
- Number of Wires: 5
- Plug Side One: Hardwired
- Plug Side Two: Fit 'N Forget S.S.|3 Position Connector 282105
- Voltage (VLT): 12|24
