Premier Manufacturing 956BK Front End Housing
was
$783.64
Special Price
$695.16
LEAD TIMES COULD TAKE 1-2 WEEKS**
Availability:
Available
SKU
10000900

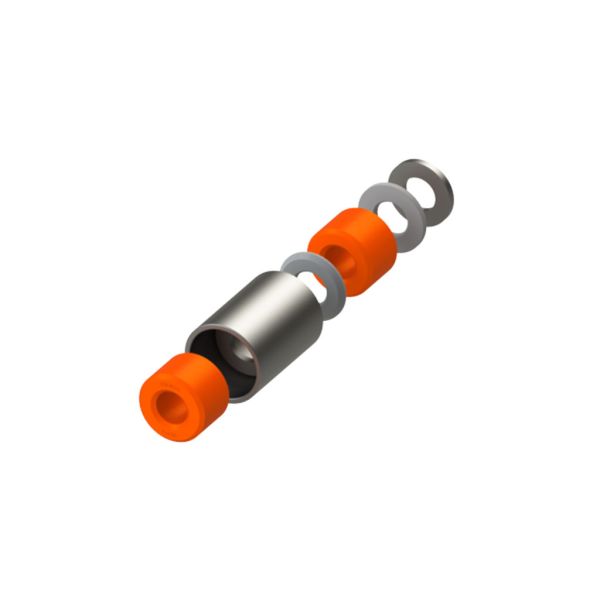

Premier Manufacturing 956BK Front End Housing
956BK Front End Housing, 956BK Front End Housings
The 956BK Front End Housing was designed specifically for use with our 307K Swivel Drawbar Eye only. This model is standard with poly bushings. Are you interested in a front end and drawbar eye kit? Consider our 307BK which is a complete kit and includes both the 956BK Front End and 307K Drawbar Eye. Check out the Compatible Drawbar Eyes and Installation Guide for more information!
NOTE: The 956BK is designed to be used with HINGED FRONT ENDS ONLY
- Brand: Premier Manufacturing
- Legacy # 956BK
- Dimensions: **SEE DIAGRAM PHOTO
Models Available:
| Model | Part # | Parts Included | Compatible Drawbar Eyes |
| 956BK | 10000900 | 956 Housing, 948AK Poly Bushings (2), 955NK-A Internal Polymer Washer, 955NK-B External Polymer Washer, 949W External Washer. | 307K |
956BK Housing Specifications:
| Inside Diameter | 2 5/8 in. |
| Outside Diameter | 5 1/2 in. |
| Length | 7 3/4 in. |
| Wall | 3/8 in. |
| Unit Weight | 18.7 lbs. |
Replacement Parts Specifications:
| Model # | Inside Diameter | Outside Diameter | Length |
| 948AK | 2 1/4 in. | 4 3/4 in. | 3 1/2 in. |
Part # 10000900
About Front End Assemblies:
Showcasing patented technology, Premier Manufacturing’s lineup of front end assemblies provide you with many options to choose from, including cast and steel housings.
Premier Manufacturing prowess and quality control provide you with the most robust assemblies in the business, as they have thicker walls and center washers than the competition. Also, you will not find weld splatter inside our Front End Housings, thus improving bushing performance and longevity. A true testament that we individually inspect everything you order from us.
When you choose Premier Manufacturing’s exceptional lineup of front end assemblies, we offer you infinite adjustability, great Drawbar Eye articulation, and outstanding shock absorption. A perfect option to extend the life of your connection points.
Compatible Draw Bar Eyes (By Model Name):
- 307 Swivel Drawbar Eyes
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
| Front End Housing Model | 956BK Model |
|---|---|
| Weight | 18.700000 lbs |
| Brand | Premier Manufacturing |
| Model # | Part # | Description | |
| 948AK | 10000040 | Bushing, Poly | |
| 949W | 10000894 | External Washer | |
| 955NK-A | 10000895 | Internal Polymer Washer | |
| 955NK-B | 10000896 | External Polymer Washer | |
| 956BK-RK | 10000901 | Repair Kit | Incl. 948AK (2), 955NK-A, 955NK-B, 949W |
| 956 | 10000870 | Housing Only |
