Premier Manufacturing 556 Front End Housing
As low as
$348.78
was
$520.00
$348.78-$672.31
LEAD TIMES COULD TAKE 1-2 WEEKS**
Availability:
Available
Only %1 left
SKU
VAR-556
Premier Manufacturing 556 Front End Housing
556 Front End Housing, 556 Front End Housings
Premier’s 556 Front End Housings were designed for use with our 207SE, 307SE, 405SE, and 407SE Swivel Drawbar Eyes. Available with either rubber or poly bushings, the 556 is the perfect front end for a variety of your hauling needs. Check out the Compatible Drawbar Eyes tab below for complementary components and the Installation Guide tab for more information!
- Brand: Premier Manufacturing
- Legacy # 556

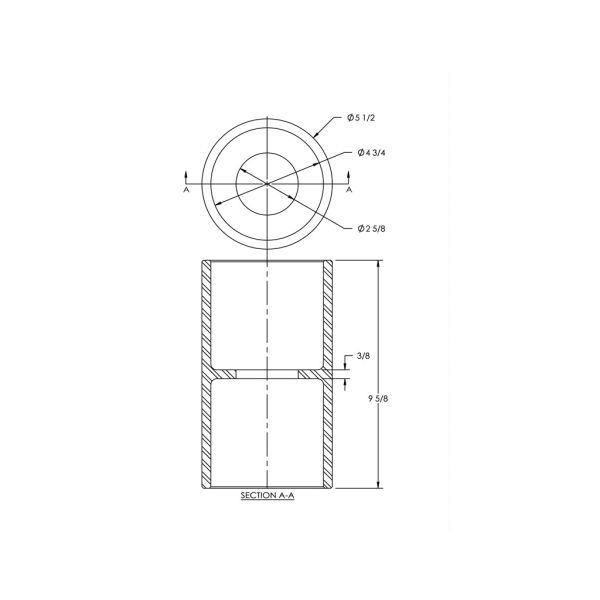

- Dimensions: **SEE DIAGRAM PHOTO
Models Available:
| Model # | Part # | Description |
| 349SE | 10000859 | Washer |
| 407W | 10000850 | Washer (for 546R only) |
| P205 | 10000939 | Bushing, Rubber |
| P205A | 10000938 | Bushing, Poly |
| R205 | 10000940 | Bushing (for 556R only) |
| 556 | 10000885 | Housing Only |
556 Housing Specifications:
| Inside Diameter: | 2 5/8 in. |
| Outside Diameter: | 5 1/2 in. |
| Length: | 9 5/8 in. |
Replacement Parts Specifications:
| Model # | Inside Diameter | Outside Diameter | Length |
| 349SE | 2 in. | 5 in. | |
| 407W | 2 33/64 in. | 5 in. | |
| P205 | 2 in. | 4 3/4 in. | 5 3/16 in. |
| P205A | 2 in. | 4 3/4 in. | 5 3/16 in. |
| R205 | 2 1/2in. | 4 3/4 in. | 5 3/16 in. |
Part # 10000886, 10000887, & 10000888
About Front End Assemblies:
Showcasing patented technology, Premier Manufacturing’s lineup of front end assemblies provide you with many options to choose from, including cast and steel housings.
Premier Manufacturing prowess and quality control provide you with the most robust assemblies in the business, as they have thicker walls and center washers than the competition. Also, you will not find weld splatter inside our Front End Housings, thus improving bushing performance and longevity. A true testament that we individually inspect everything you order from us.
When you choose Premier Manufacturing’s exceptional lineup of front end assemblies, we offer you infinite adjustability, great Drawbar Eye articulation, and outstanding shock absorption. A perfect option to extend the life of your connection points.
Compatible Draw Bar Eyes (By Model Name):
- 207SE Swivel Drawbar Eyes
- 307SE Swivel Drawbar Eyes
- 405SE Swivel Drawbar Eye
- 407SE Swivel Drawbar Eye
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
| Weight | 25 lbs |
|---|---|
| Brand | Premier Manufacturing |
| Model # | Part # | Description |
| 349SE | 10000859 | Washer |
| 407W | 10000850 | Washer (for 546R only) |
| P205 | 10000939 | Bushing, Rubber |
| P205A | 10000938 | Bushing, Poly |
| R205 | 10000940 | Bushing (for 556R only) |
| 556 | 10000885 | Housing Only |
