Premier Manufacturing 340S & 340SA Front End Housing

Be the first to review this product

As low as $424.62 was $424.62

$424.62-$530.65

LEAD TIMES COULD TAKE 1-2 WEEKS**

Availability: Available

Only %1 left

SKU

VAR-340S

Description

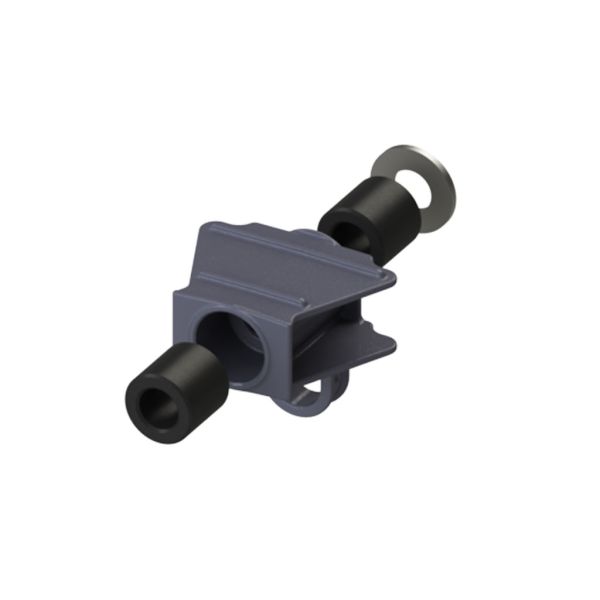

Premier Manufacturing 340S & 340SA Front End Housing

340A Front End Housing, 340S & 340SA Front End Housings

The 340S & 340SA Front End Housings were designed for use with our 207S, 307S, and 405S Swivel Drawbar Eyes only. Available with either rubber or poly bushings, they are perfect for all of your trailer needs. Check out the Compatible Drawbar Eyes tab below for complementary components and the Installation Guide tab for more information!
Accepts 3 in. (76 mm) standard channel or square tubing.

Brand: Premier Manufacturing
Legacy # 340S & 340SA
Dimensions: 9″ X 4-9/16″ X 10″

Models Available:

Model #	Part #	Parts Included	Compatible Drawbar Eyes
340S	10000851	346 Housing, 349 Washer, 348 Rubber Bushings (2)	207S, 307S, 405S
340SA	10000853	346 Housing, 349 Washer, 348A Poly Bushings (2)	207S, 307S, 405S

346 Housing Specifications:

Unit Weight:

26.3 lbs. (11.9 kg)

Replacement Parts Specifications:

Model #	Inside Diameter	Outside Diameter	Length
348	2 in.	3 1/2 in.	3 1/2 in.
348A	2 in.	3 1/2 in.	3 1/2 in.
349	2 1/16 in.	4 1/4 in.

Part # 10000851 & 10000853

About Front End Assemblies:

Showcasing patented technology, Premier Manufacturing’s lineup of front end assemblies provide you with many options to choose from, including cast and steel housings.
Premier Manufacturing prowess and quality control provide you with the most robust assemblies in the business, as they have thicker walls and center washers than the competition. Also, you will not find weld splatter inside our Front End Housings, thus improving bushing performance and longevity. A true testament that we individually inspect everything you order from us.
When you choose Premier Manufacturing’s exceptional lineup of front end assemblies, we offer you infinite adjustability, great Drawbar Eye articulation, and outstanding shock absorption. A perfect option to extend the life of your connection points.

Compatible Draw Bar Eyes (By Model Name):

207 Swivel Drawbar Eyes
307 Swivel Drawbar Eyes
405 Swivel Drawbar Eye

Selecting The Right Equipment:

Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
