Premier Manufacturing 1400H Slack Reducing Couplings

Premier Manufacturing 1400 Slack Reducing Couplings

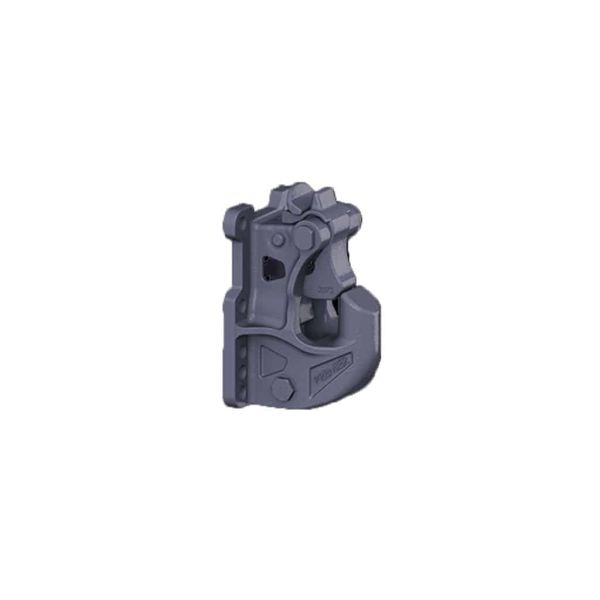

1400H Couplings
Premier Manufacturing’s New 1400 And 1400h Couplings Replace The 100-4 And 100-4h Couplings That Have Been Used In Heavy-Duty Applications For Many Years.
These Hitches Are The First Of Our Silver Series Line. They Are Easy To Operate With Strike-Resistant Latching And A Popular Mounting Pattern Making Them The Ideal Hitch For Many Industries And Applications.
Using The Latest In Technology, Engineers Effectively Moved Material Where It Is Needed Most Resulting In A Reduction In Weight And An Increase In Strength. With Updated Material Specifications, The New 1400 And 1400h Have A 40% Increase In Minimum Surface Hardness Creating A Significant Reduction In Wear. Additionally, The Latch Capacity Has Increased From 20,000 Pounds To 60,000 Pounds.

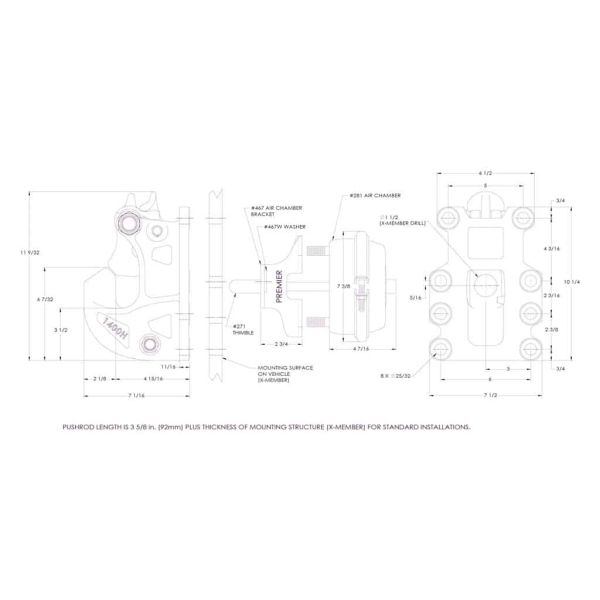

Important Note: The Pushrod Length Is Different Than The 100-4 And The 100-4h. The Pushrod Length For The 1400 And The 1400h Is 3 5/8in (92 Mm).

• Brand: Premier Manufacturing
• Legacy # 1400H, 1400HA, 1400HA-2
• Dimensions: 7-1/16" X 7-1/2" X 11-9/32"
• Heavy Duty
• Slack Reducing
• Silver Series

Available Models:

Model #	Part #	Description
1400H	10005676	1400H Coupling & 271 Thimble
1400HA	10005697	1400H Coupling,508 Bolt Kit, 281 Air Chamber, 467 Air Chamber Adapter Bracket, 271 Thimble
1400HA-2	10005698	Same as 1400HA, without the 508 Bolt Kit

Part # 10005676,  10005697,  10005698

Accessories & Replacement Parts:

Model #	Part #	Description
271	10000107	Thimble
281	10000116	Air Chamber, Type 24
282	10000122	Air Chamber, Type 30
467	10000135	Air Chamber Adapter Bracket (2 3/4 in. overall length)
467F	10000138	Air Chamber Adapter Bracket (5 1/2 in. overall length)
467H	10000140	Air Chamber Adapter Bracket (3/4 in. overall length)
508	10000155	Bolt Kit
2000PK	10000737	Parts Kit
438	10004779	Drawbar Guide Set (Left & Right Sides Incl.)
438L	10000131	Drawbar Guide, Left Side Only
438R	10000133	Drawbar Guide, Right Side Only
14014	10000062	Wear Gage
14026	10000071	Wear Gage, Latch Gage Bar

About Premiere's Couplings:

Whatever Your Application, Selecting The Proper Equipment For The Job Is Very Important. Proper Selection Along With Regular Inspection And Maintenance Will Help Keep Operating Costs Minimal While Providing Long Life To Each Component. To Determine Wear Limits, Premier Created Wear Gages That Help Judge The Useful Life Of Couplings And Drawbar Eyes. In Accordance With Premier And The Federal Motor Carrier Safety Regulations, These Were Designed To Identify Wear At The Critical Percentages Of 18% And 20%, By Measuring The Cross-section Of Coupling Hooks (Horn) And Drawbar Eye Loops.

Selecting The Right Equipment:

Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.

1. Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
2. Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
3. Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
4. Browse Premier Product Catalog (Based on Steps 1 - 3)

*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
