Bendix R-12 Relay Valve w/ Bracket | # BW 103009N
$86.91
Availability: Available
Availability:
4 Available
SKU
BW 103009N

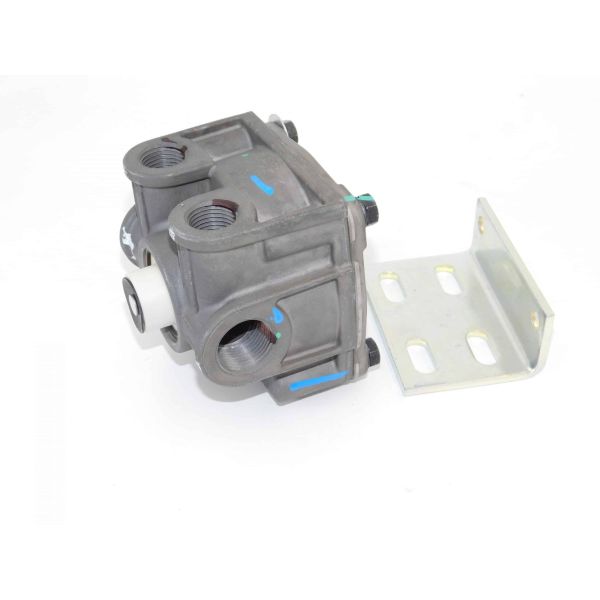

Bendix R-12 Relay Valve With Bracket
BW 103009N Truck R-12 Relay Valve w/ Bracket
- Brand: Bendix
Specifications:
- Gross Weight: 1.261 Kilograms
- Net Weight: 1.261 Kilograms
- Length: 102.0 Millimeters
- Width: 102.0 Millimeters
- Height: 100.0 Millimeters
- VMRS Code: 013-010-009
- Mounting: .96 in x .40 in Slot (x4)
- Mounting Bracket Location: Loose in Box
- Body Configuration: 2 SUP / 2 DEL (H)
- Supply Port 1: 3/4 - 14 NPT
- Supply Port 2: 3/4 - 14 NPT
- Control / Secondary Service Port: 1/4 - 18 NPT
- Delivery Port 1: 1/2 - 14 NPT
- Delivery Port 2: 1/2 - 14 NPT
- Exhaust Port: Dust Shield
- Crack Pressure 4.0 PSI
- TMC Washer: RV040
- Maximum Operating Temp: 200 °F (93 °C)
- Minimum Operating Temp: -40 °F (-40 °C)
Part # 103009N
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
| Weight | 3 lbs |
|---|---|
| Part Number | BW 103009N |
| Brand | Bendix |
| Dimensions | 6 × 6 × 6 in |
