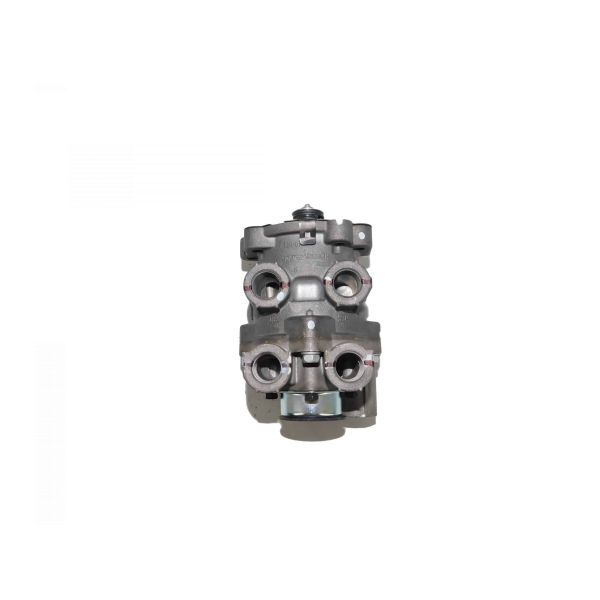

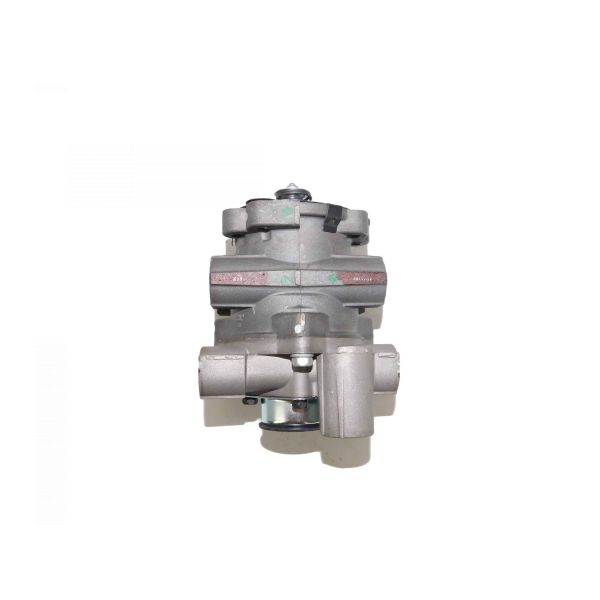

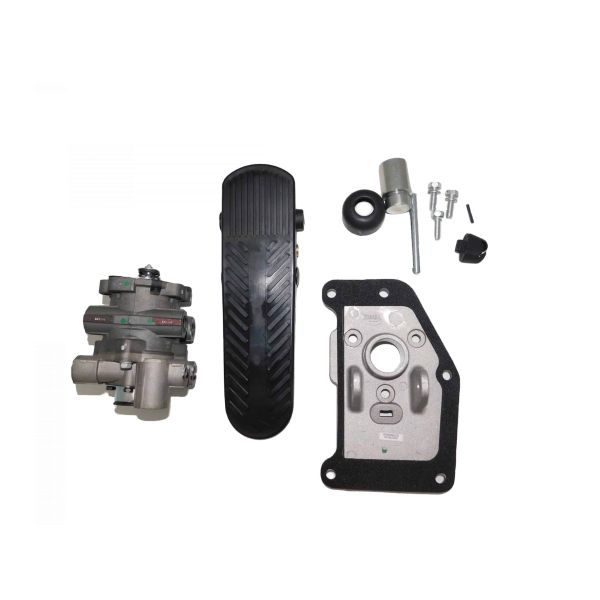

Bendix E-8P Foot Brake Valve, Mounting Plate & Treadle Assembly | # BW 800633

$677.71

Availability: Out Of Stock

Availability: 1 Available

SKU

BW 800633

BW 800633 Truck Foot Brake Kit

Auxiliary Port Diameter	Closed Port
Delivery Port Diameter	3/8-18 in. NPT
Differential Pressure	3 PS
Exhaust Port Diameter	Dust Shield
Maximum Operating Temperature	200 °F (93 °C)
Minimum Operating Temperature	-40 °F (-40 °C)
Mounting Hole Diameter	5/16-18 in. UNC-3B
Mounting Hole Quantity	3
New Or Remanufactured	New

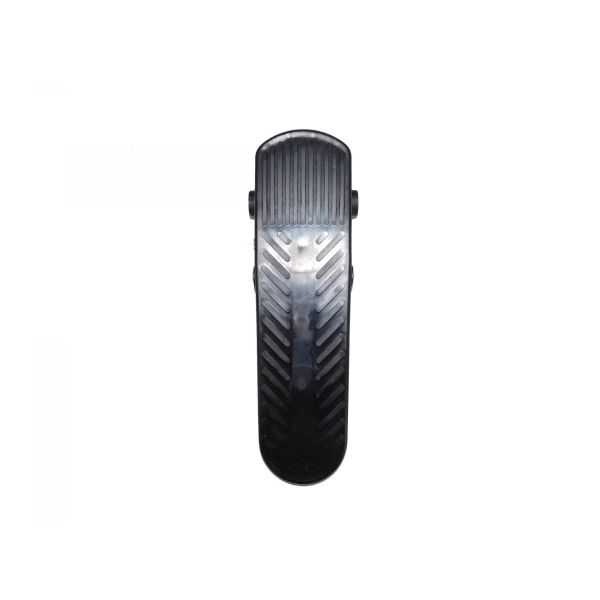

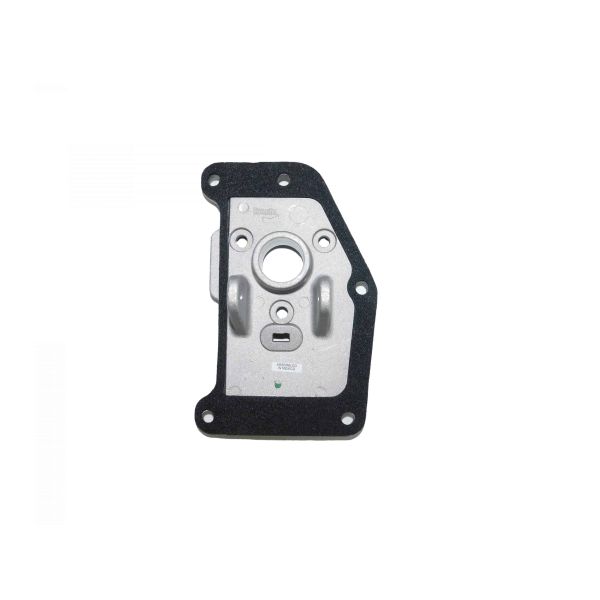

Notes	With 10.94" Steel Floor Pedal, Rubber Boot, and Mounting Plate; FMVSS 121 Compliant; Treadle Pedal Style; Steel Plunger
Port Configuration	Parallel
Series	E-8P®
Supply Port Diameter	3/8-18 in. NPT

Part # BW 800633
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!

Replaces Obsolete Bendix E-12 Air Brake Valves:

Specifically designed for use on buses, where smooth brake applications contribute to passenger comfort
Made using state-of-the-art technology for superior performance and reliability
Engineered to OE standards for exact form, fit, and function
Factory-tested to ensure it works just like the original unit that came with your vehicle
All Bendix valves are designed to enhance and improve vehicle performance
