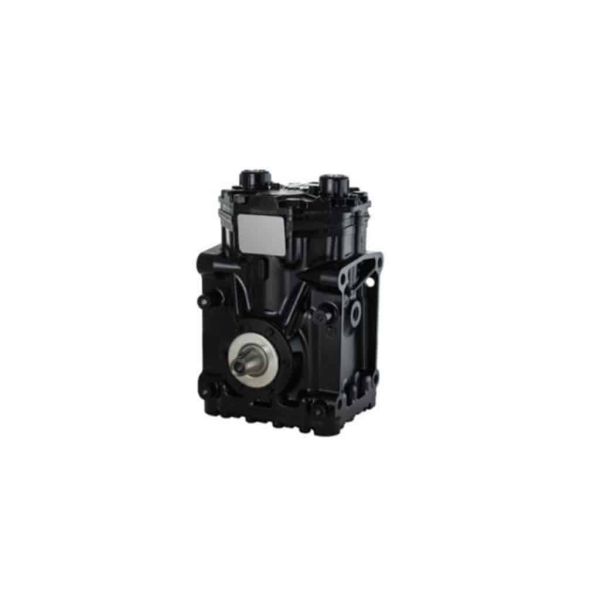

Alliance Freightliner Two-Cylinder AC Compressor PV6, 6", Far Forward, 1W | ABP N83 304131T

$393.95

Availability: Available

Availability: Available

SKU

ABP N83 304131T

ABP N83 304131T Two-Cylinder Truck AC Compressor

Three-Phase Lubrication System For A More Efficient Product
Large Oil Sump Allows The Compressor To Be Self-Lubricating Regardless Of The Amount Of Oil Mixed With Refrigerant
Large Front And Rear Bearings To Support A Cast Iron Shaft
High Load Capacity Ball Bearings
High Strength Aluminum Alloy Pistons And Connecting Rods
Internal Case Iron Cylinder Liners For Added Durability
Stainless Steel Reed Valves Prevent Rust Formation And Reed Failure And Reduce Effects Of Liquid Slugging
Universal Mounting Allows Installation And Operation In Any Position From Horizontal Left To Horizontal Right With No Field Adjustments Necessary
Universal Rotation
One Oil Plug Permits Easy Checking Of Crankcase Oil Level Regardless Of Mounting Position

Specifications	206	209	2010
Number Of Cylinders	2	2	2
Bore	1.875 In (47.63 mm)	1.875 In (47.63 mm)	1.875 In (47.63 mm)
Stroke	1.105 In (28.07 mm)	1.573 In (39.95 mm)	1.866 In (47.40 mm)
Displacement	6.10 CU In/Rev (100 CC/Rev)	8.69 CU In/Rev (142 CC/Rev)	10.3 CU In/Rev (169 CC/Rev)
Maximum RPM	6000 RPM	6000 RPM	6000 RPM
Refrigerant	R-12, 22, 502, 134a & New Blends	R-12, 22, 502, 134a & New Blends	R-12, 22, 502, 134a & New Blends
Initial Oil Charge	10 FL OZ (296 ml)	10 FL OZ (296 ml)	10 FL OZ (296 ml)
Weight	13.0 LBS (5.9 kg)	14.6 LBS (6.6 kg)	14.6 LBS (6.6 kg)
Lubrication	***Splash And Positive Pressure And Oil Return Through Suction Side	Same	Same
